XZFW系列現場分析小屋(IIB、IIC)
|
|
| |
|
適用范圍
1、爆炸性氣體環境：1區、2區
2、場所中危險氣體或蒸氣：IIA、IIB、IIC
3、溫度組別：T1～T4
4、環境溫度：-20℃～+40℃
5、戶內、戶外(IP56)
Applying scope
1、Explosive gas atmospheres:Zone 1＆2
2、Dangerous gases or vapors zone: IIA、IIB、IIC
3、Temperature classes:T1～T4
4、Environment temperature:-20℃～+40℃
5、Indoor and outdoor(IP56)
產品特點
1、設有防爆配電箱和接線箱
2、 敷線方式根據用戶要求而定
3、可根據用戶要求安裝防爆空調，確保小屋內的溫度，也可在屋內安裝防爆電熱汀或蒸汽供暖設備
4、內裝防爆熒光燈
5、可根據用戶要求內裝工作臺
6、 分析儀表可由用戶自定
7、分析小屋具有防震、防靜電、防火花、防塵、抗干擾等優點，為儀表提供良好的運行環境，增強系統的可靠性
8、分析小屋可將各工業領域中應用的各過程分析儀表相對集中安裝，利用分析小屋公共工程統一供電，統一與控制室互傳 信號
1.Provided with flamepoof distribution box and flameproof junction box
2.Wiring as per user′s requirement
3.According to user′s need, explosion-protected air conditioner,explosion-protected electrical equipment, or steam heating equip ment can be installed in the houselet to keep the temperature of the house
4.Built in Explosion-protected fluorescent lamps
5.Built in worktable as per user′s need
6.The analysis instruments can be determined by user
7.The analysis houselet is shake-proof,static proof,spark-proof, dust-proof, anti-jamming for better operating surroundings and strengthened reliability
8.Various kinds of process analysis instruments in industry field can be installed together in the analysis houselet and it is powered and signal tranfered by equipments in the house
|
|
 |
| |
|

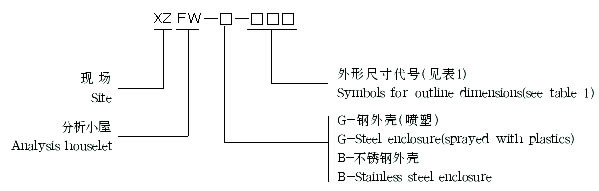

| 型號含義 Type designation |
|
 |
| |
|
| 主要技術參數 |
|
防爆標志 |
防護等級 |
吹洗 |
氣源 |
耗氣量 |
Expdem II BT4
Expdem II CT4 |
IP56 |
正壓 |
凈化空氣 |
4-15m3/h |
|
|
| |
|
 |

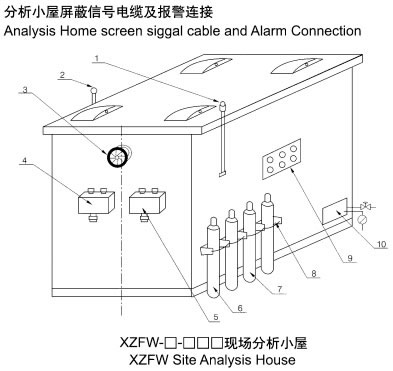

1、尾氣排放管
Tail gas plume
2、報警燈
Alarm lamp
3、通風機
Veatilator
4、供電箱
Power supply box
5、信號及報警接線盒
Signal and alarm junction box
6、參比氣、載氣氣源
Sample gas
|
7、標準氣
Standard gas
8、鋼瓶固定架
Fixed frame of steel bottle
9、氣路接口板
Gas pipeline connecting board
10、分析間內工程管路接口板
Engineering pipeline connecting board inisde the analysis house. |
|
| |
|
| 現場分析小屋的規格及型號（表1) Size and model of the site analysis houselet( table 1) |
|
規格、型號 |
尺寸 高×寬×深 |
材質 |
外形 |
內腔 |
內腔底面積 |
XZFW-G-4311
XZFW-B-4312
XZFW-L-4313 |
2500×2200×1700 |
2235×2100×1600 |
3.36m2 |
鋼外殼（噴塑）
鋁合金外殼 |
XZFW-G-4321
XZFW-B-4322
XZFW-L-4331 |
2500×2800×1700 |
2235×2700×1600 |
4.32m2 |
鋼外殼（噴塑）
不銹鋼外殼 |
XZFW-G-4331
XZFW-B-4332
XZFW-L-4333 |
2500×3400×1700 |
2235×3300×1600 |
5.28m2 |
鋁合金外殼
鋼外殼（噴塑）
不銹鋼外殼 |
XZFW-G-4341
XZFW-B-4342
XZFW-L-4343 |
2500×4000×1700 |
2235×3900×1600 |
6.24m2 |
鋁合金外殼
鋼外殼（噴塑）
不銹鋼外殼
鋁合金外殼 |
|
| |
|
| |
|
| |
|
