LZ-□防爆操作柱(IIB、IIC)


適用范圍
1、防爆性氣體環境:1區、2區
2、場所中危險氣體或蒸氣:IIA、IIB、IIC
3、溫度組別:T1~T6
4、戶內、戶外(IP54、可按用戶要求達到IP65)

Applying scope
1、Explosive gas atmospheres:Zone 1&2
2、Dangerous gases or vapors zone: IIA、IIB、IIC
3、Temperature classes:T1~T6
4、Indoor and outdoor(IP54.It could be designed as IP65 according to user′s requirements.)

產品特點
1、鑄鋁合金外殼,表面噴塑
2、內裝轉換開關、電流表、按鈕、指示燈等
3、開關取代按鈕
4、30多種功能,270多個規格
5、開孔少,功能多,防爆可靠性好,安全系數高
6、安裝方式;掛式、橋架式、立式
7、電流表量程由用戶指定,可選廣角度表、過載電流表、數顯表、電壓表、轉速表等
8、可根據用戶要求特制
9、鋼管布線或電纜布線,電纜布線須配電纜夾緊密封接頭

Features
1、Enclosure is made of casting aluminium alloy ,surface is sprayed with plastics
2、Built-in rotary switch, push button,ampere mrter, indicating lamp etc
3、Switch replaces button
4、With more than 30 functions and 270 spectifications
5、More reliable and safer due to less holes and more functions
6、Mounting from could be pendant,rack,pole and others
7、User may select the range of ammeter and other meters such as wide angle meter, ammeter with overload digital display meter, voltmeter and tachomter
8、For user′s requirements, it could be specially made
9、Wiring with conduit or cable. For cable, it should be fitted with explosion protected cable seal gland

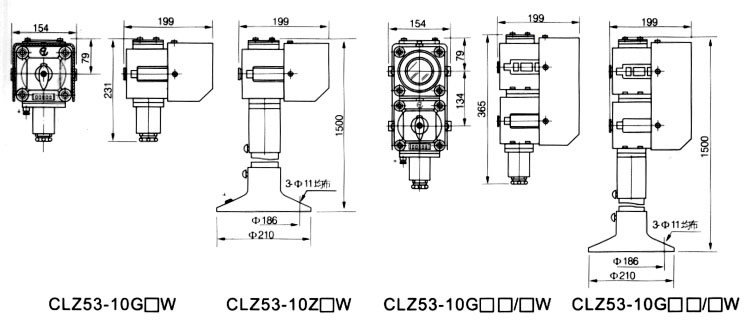

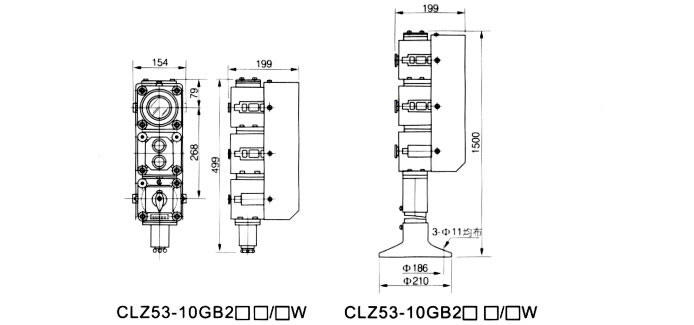

IIC級
IIC grade

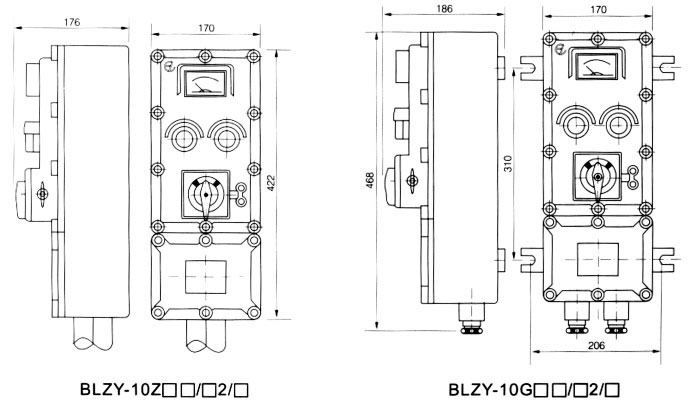

IIB級
IIB grade

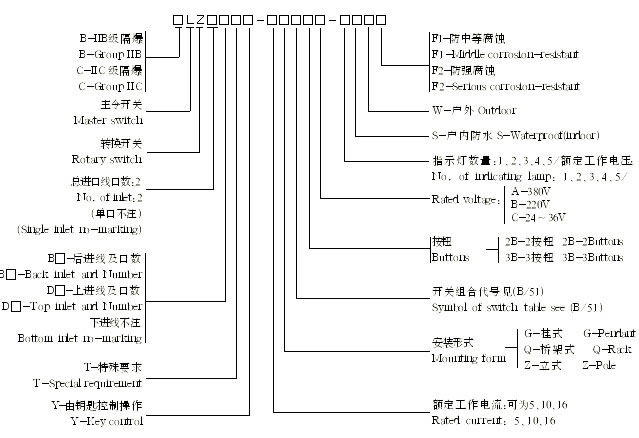

型號含義 Type designation
*如選2個以上開關時,請連續標注開關符號。例如:選3個開關且其中2只為B開關1只為C開關,應寫為:B/B/C
*If more than two switches are chosen, please mark continous switch symbols, e.g. for three switches,among which two are B, the third one is C,then mark B/B/C


主要技術參數 Specification
額定工作電壓
額定工作電流
使用類別
防護等級
防腐等級
進線口規格
電纜外徑
380/220
16
AC1
AC3
IP54、*IP65
W、WF1、WF2
掛式:Ceiling:G20或特制
Ceiling:G20 or Specially Made
橋架式Rack:G20或特制
Rack: G20 or Specially Made
G25/Ф10-Ф18
G20/Ф8-Ф12
