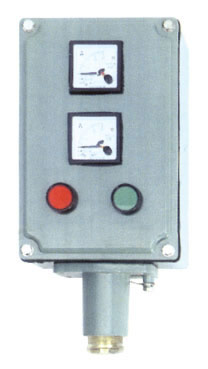

NLZ-□防塵防水操作柱
|
|
| |
|
產品特點
1、鑄鋁合金外殼或鋼板焊接，表面噴塑
2、內裝轉換開關、電流表、指示燈按鈕等
3、可配無源指示燈，以便夜晚觀察數據
4、旋扭取代按扭
5、30多種功能，270多個規格
6、開孔少，功能多，安全系數高
7、安裝方式: 掛式、橋架式、立式
8、電流表量程由用戶指定，可選廣角表、過載電流表、數 顯表、電壓表、轉速表等
9、可根據用戶要求特制
Features
1、Enclosure is made of casting aluminium alloy or welding steel plate
surface is sprayed with plastics
2、Built-in rotary switch, ampere meter, indicating lamp push buttons etc
3、For observation of data at night,it could be equipped with indicating lamp without power source
4、Knob replaces button
5、With more than 30 functions and 270 spectifications
6、More reliable and safer due to less holes and more functions

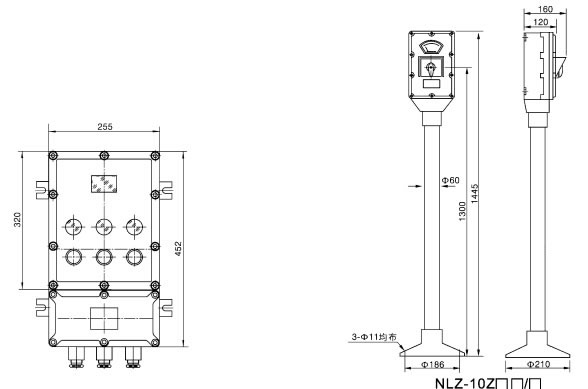

7、Mounting from could be pendant,rack pole and others
8、User may select the range of ammeter and other meters such as wide angle meter, ammeter with overload, digital display meter, voltmeter and tachometer
9、For user′s requirements, it could be specially made |
|
 |
| 舉例 Example |
|
 |
| |
|

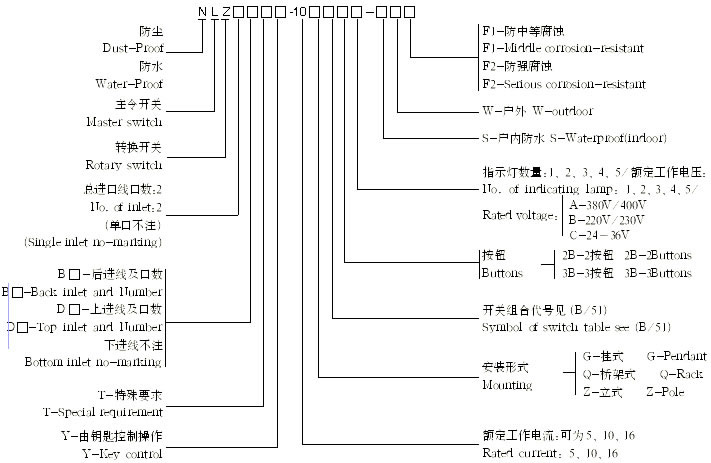

| 型號含義 Type designation |
|
 |
*如選2個以上開關時，請連續標注開關符號。例如：選3個開關且其中2只為B開關1只為C開關，應寫為：B/B/C
*If more than two switches are chosen, please mark continous switch symbols, e.g. for three switches,among which two are B, the third one is C,then mark B/B/C |
|
| |
|
| 主要技術參數 Specification |
|
|
|
|
|
|
|
|
380/220
220/230 |
5 10 16 |
AC1
AC2 |
|
|
立式Pole:G25或特制Pole: G25 or Specially Made 掛式Ceiling:G20或特制Ceiling:G20 or Specially Made橋架式Rack:G20或特制Rack: G20 or Spcially Made |
G25/Ф10-Ф18
G20/Ф8-Ф12 |
|
| |
|
| |
|
| |
|
