BQC70復合型防爆磁力起動器(IIB)
|
|
| |
|
適用范圍
1、同時出現或分別出現爆炸性氣體（1區或2區)和可燃性粉塵（20 區、21區或22區）的危險場所
2、場所中危險氣體或蒸氣：IIA、IIB
3、溫度組別：T1～T4
4、戶內、戶外(防護等級IP65)
Applying scope
1、Hazardous area with explosive gas (Zone 1＆2) and / or com bustible dust (Zone 20＆21＆22)
2、Dangerous gases or vapors zone: IIA、IIB
3、Temperature classes:T1～T4
4、Indoor and outdoor(degree of protection IP65)
產品特點
1、外殼采用鋁合金鑄造(或優質碳鋼焊接)而成，表面噴塑
2、起動器為一體式
3、內裝交流接觸器，熱繼電器、熔斷器、信號燈、轉換開關等
4、進出線腔、元件腔分別獨立
5、輸入、輸出三相五線制
6、可據用戶特制
7、可鋼管布線或電纜布線。電纜布線須配電纜密封接頭
Features
1、Enclosure is made of coating aluminium alloy (or quality carbon steel),Surface is sprayed with plastics
2、Integrated starter
3、Built-in AC contactor, thermorelay,fuse,signal lamp,rotary switch etc
4、Inlet compartment,outlet compartment and component compartment are independent from each other
5、Input, output with 3 phases 5 wires
6、For user′s requirements, it could be specially made
7、Wiring with conduit or cable. For cable, it should be fitted with explosion-protected cable sealing connector
|
|
 |
| |
|
| 主要技術參數 Specification |
|
|
|
額定工作電壓 |
額定工作電流 |
Exde II BT4/
DIP A20 TA , T4
|
|
|
|
|
| |
|

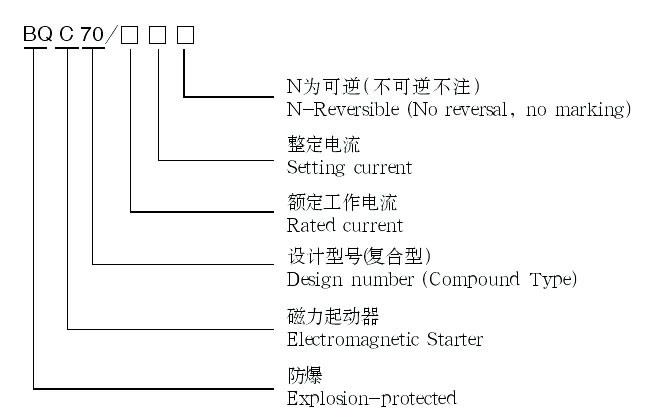

| 型號含義 Type designation |
|
 |
| |
|

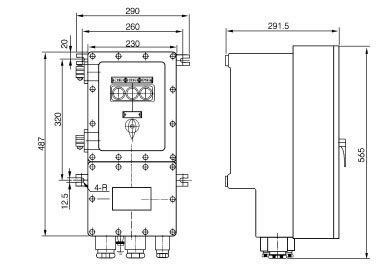

| 外形尺寸及示意圖 Outline dimensions |
|
|
注：本示意為額定工作電流≤32A且材質為鑄造鋁合金外形
|
|
| |
|
| |
|
| |
|
