適用范圍
1、爆炸性氣體環境危險場所：1區、2區
2、爆炸性氣體環境：ⅡA、ⅡB
3、溫度組別：T1～T6
4、戶內、戶外
Application scope
1、Explosive gsa atmospheres hazardous location:zone 1,zone2
2、Explosive gsa atmospheres:group ⅡA,ⅡB
3、Temperature class:T1～T6
4、Indoor and outdoor
產品特點
1、可適用于400Ｖ、230V及以下線路中作為連接各種電器、儀表設備的分線、接線之用，也可作自控或通訊信號或電源線 的連接。
2、鑄鋁合金外殼，表面噴塑。
3、端子、出線口方向。數量及公稱直徑可變化。
4、鋼管或電纜布線，電纜布線須配電纜密封接頭。
Product Features
1、It could be used for connecting of branch lines and wire of apparatus and meters in circuit of 400/230V and blew,also of signal or source line for automatic control of telecommunication.
2、Enclosure is made of casting aluminum alloy,sprayed with plastics.
3、No.of terminal,direction of outlets,number and normal dia.could be changed.
4、Wiring with conduit or cable,if the latter,it should be fitted with explosion-protected cable seal gland. |
|

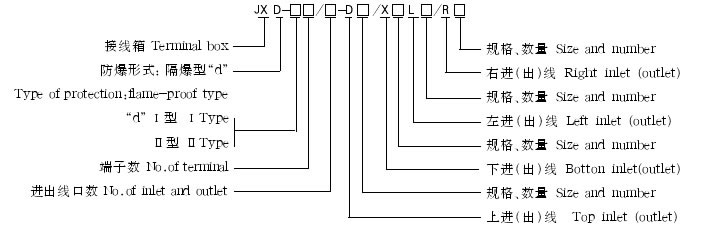

型號及規格 |
端子數 |

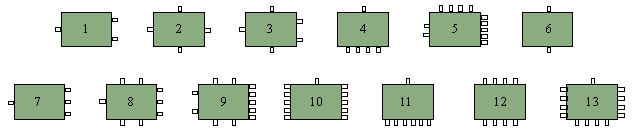

結構形式 |
進出口形式 |

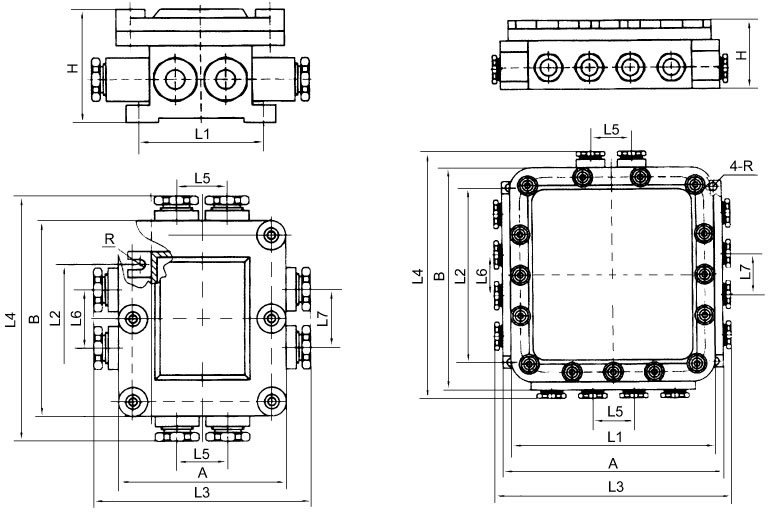

外型及安裝尺寸 |
L1 |
L2 |
L3 |
L4 |
L5 |
L6 |
L7 |
R |
A |
B |
H |
JXD-Ⅰ4/3 |
4 |
1 |
2 * a , 1 * b |
85 |
75 |
150 |
|
|
|
40 |
3.5 |
115 |
135 |
78 |
JXD-Ⅰ4/4 |
4 |
2 |
3 * a , 1 * b |
85 |
75 |
150 |
170 |
|
|
|
3.5 |
115 |
135 |
78 |
JXD-Ⅰ4/5 |
4 |
3 |
4 * a , 1 * b |
85 |
75 |
150 |
170 |
|
|
40 |
3.5 |
115 |
135 |
78 |
JXD-Ⅰ6/5 |
6 |
3 |
4 * a , 1 * b |
84 |
107 |
150 |
201 |
|
|
55 |
3.5 |
115 |
166 |
78 |
JXD-Ⅰ8/4 |
8 |
7 |
3 * b , 1 * c |
135 |
145 |
210 |
|
|
|
55 |
3.5 |
170 |
220 |
89 |
JXD-Ⅰ8/5 |
8 |
3 |
4 * b , 1 * c |
135 |
145 |
210 |
260 |
|
|
65 |
3.5 |
170 |
220 |
89 |
JXD-Ⅰ8/8 |
8 |
8 |
7 * b , 1 * c |
135 |
145 |
210 |
260 |
65 |
|
55 |
3.5 |
170 |
220 |
89 |
JXD-Ⅱ6/4 |
16 |
7 |
3 * b , 1 * c |
145 |
235 |
210 |
|
|
|
80 |
4.5 |
170 |
315 |
89 |
JXD-Ⅱ6/5 |
16 |
3 |
4 * b , 1 * e |
145 |
235 |
210 |
350 |
|
|
95 |
4.5 |
170 |
315 |
89 |
JXD-Ⅱ6/8 |
16 |
8 |
7 * b , 1 * e |
145 |
235 |
210 |
350 |
55 |
|
80 |
4.5 |
170 |
315 |
89 |
JXD-Ⅱ6/11 |
16 |
9 |
9 * b , 2 * e |
145 |
235 |
210 |
350 |
55 |
120 |
475 |
4.5 |
170 |
315 |
89 |
JXD-Ⅰ24/4 |
24 |
7 |
3 * b , 1 * e |
205 |
260 |
260 |
|
|
|
80 |
4.5 |
220 |
340 |
89 |
JXD-Ⅰ24/5 |
24 |
3 |
4 * b , 1 * e |
205 |
260 |
260 |
375 |
|
|
120 |
4.5 |
220 |
340 |
89 |
JXD-Ⅰ24/8 |
24 |
8 |
7 * b , 1 * e |
205 |
260 |
260 |
375 |
75 |
|
80 |
4.5 |
220 |
340 |
89 |
JXD-Ⅰ36/15 |
36 |
5 |
13 * b , 2 * e |
175 |
260 |
330 |
380 |
60 |
140 |
52 |
4.5 |
295 |
345 |
95 |
JXD-Ⅱ3/2 |
3 |
6 |
2 * e |
62 |
120 |
|
210 |
|
|
|
4.5 |
120 |
144 |
75 |
JXD-Ⅱ12/5 |
12 |
4 |
4 * b , 1 * e |
198 |
120 |
172 |
|
45 |
|
|
4.5 |
240 |
136 |
80 |
JXD-Ⅱ12/8 |
12 |
11 |
8 * e |
198 |
120 |
|
184 |
45 |
|
|
4.5 |
240 |
164 |
80 |
JXD-Ⅱ18/7 |
18 |
12 |
4 * b , 1 * e |
274 |
120 |
|
172 |
43 |
|
|
4.5 |
318 |
144 |
80 |
JXD-Ⅱ30/11 |
30 |
10 |
10 * b , 1 * e |
190 |
266 |
275 |
350 |
|
50 |
|
5 |
224 |
286 |
85 |
JXD-Ⅱ36/13 |
36 |
13 |
12 * b , 1 * e |
218 |
215 |
215 |
360 |
50 |
50 |
|
5 |
268 |
274 |
85 |
|
