BHZ系列防爆組合開關(IIC)
|
|
| |
|
適用范圍
1、爆炸性氣體環境危險場所：1區、2區
2、爆炸性氣體混合物：ⅡA、ⅡB、ⅡC
3、溫度組別：T1～T6
＊如要求ⅡC級，請注明
Application
1、For the dangerous sites with explosive air mixture:zone 1 and 2
2、For explosive air mixture:IIA、IIB、IIC
3、Temperature classification:T1～T6
*Pls note if ⅡC Grade needed
|
產品特點
1、鑄鋁合金外殼表面噴塑。
2、內裝轉換開關，用于電流60A以下的電氣線路中，作為電源引入開關，并可控制電動機起動、變速、停止、換向等
3、鋼管或電纜布線均可。
Features
Product Features
1、Diecasted Al-alloy shell with plastic-sprayed surface.
2、The inner mounted,changeover switch can be used as power intaking switch and controlls the starting,speed-regulating,stopping and converting,etc for engine under the condition of the circuit below 60A current.
3、Suitable both for steelpipe and cable wiring. |
|
 |
| |
|

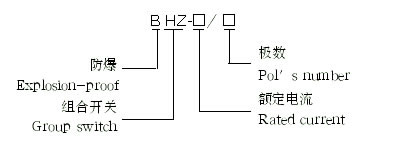

| 型號含義 Type designation |
|
 |
| 主要技術參數 Main technical parameters |
|
產品型號 |
|
|
|
|
用途 |
BHZ-□/1
|
220/380 |
10 25 60 |
Exd II BT6
Exd II CT6
|
Ф10-Ф14
Ф18-Ф22 |
用于單電源開關 |
BHZ-□/2 |
用于兩種電源或兩種電路換接開關 |
BHZ-□/3 |
用于控制交流電動機 |
|
|
| |
|

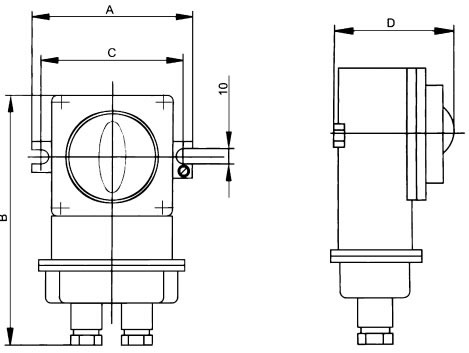

| 外形尺寸及安裝尺寸 Outline and mounting example |
|
|
|
|
|
|
|
|
215 |
135 |
104 |
|
185 |
240 |
160 |
160 |
|
210 |
280 |
200 |
200 |
|
|
 |
|
| |
|
| |
|
