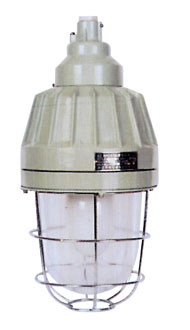

BAD62系列隔爆型防爆燈(IIC)
|
|
| |
|
適用范圍
1、1區、2區危險場所。
2、ⅡA、ⅡB、ⅡC類爆炸性氣體環境。
3、可配裝汞燈、高壓鈉燈、金鹵燈、白熾燈。
Application
1、Can be used in Zone 1 and Zone 2 dangerous places.
2、Can be used in ⅡA、ⅡB、ⅡC group explosive atmosphere.
3、Suitable for incandescent lamp, mercury vapor lamp, high-pressure
sodium vapor lamp, metal halide lamp.
|
產品特點
1、鑄鋁合金外殼，表面噴塑。
2、結構緊湊，外形美觀。
3、燈體采用螺紋緊固，防爆性能好。
4、鋼管布線。
5、符合GB3836-2000，IEC60079標準要求。
Features
1、Diecasted aluminium alloy shell with plastic-sprayed surface.
2、Compact structures and aesthetic appearance.
3、Screw thread is used in lampbody for fastening so that the lamp has good
performance of explosion-proofing.
4、Suitable for steelpipe.
5、Suitable for GB3836-2000, IEC60079 standard request. |
|
 |
| |
|
 |
| |
|
| 主要技術參數 Main technical parameters |
|
|
防護等級 |
電纜外徑 |
進線口螺紋 |
|
Exd II CT3 |
IP55 |
10-14 |
3/4(2個) |
E40 |
|
|
| |
|
| 配用光源 Supplied with lamps |
|
光源類型 |
目鎮汞燈 |
白熾燈 |
高壓汞燈 |
高壓鈉燈 |
金鹵燈 |
額定電壓(V) |
220 |
額定功率(W) |
250 |
300 |
125 |
150 |
175 |
250 |
250 |
250 |
450 |
400 |
400 |
400 |
|
|
| |
|
殼體類型 |
配用光源功率(Kw) |
質量(Kg) |
I |
150 175 250 300 |
12 |
II |
400 450 |
15 |
|
|
| |
| |
| |
|
| |
|
