BAJ52系列防爆應急燈(IIB、IIC)
|
|
| |
|
適用范圍
1、1區、2區危險場所。
2、ⅡA、ⅡB、ⅡC類爆炸性氣體環境。
3、可配裝白熾燈、汞燈。
＊要求ⅡC類時請注明。
Application
1、Can be used in Zone 1 and Zone 2 dangerous places.
2、Can be used in ⅡA、ⅡB、ⅡC group explosive atmosphere.
3、Suitable for incandescent lamp, mercury vapor lamp.
*Please note if needⅡC group. |
產品特點
1、鑄鋁合金外殼，表面噴塑。
2、應急專用燈中正常照明燈和應急照明燈
各自獨立，適合于安裝條件許可的場所；
照明應急兩用燈，正常照明和應急照明
共用一個燈體，光源獨立。
3、內裝免維護鎳鎘電池組，在正常供電下自動
充電，事故斷電或停電時應急燈自動點亮。
4、鋼管或電纜布線均可。
5、可根據用戶要求設置試驗按鈕和指示燈。
6、符合GB3836-2000，IEC60079標準要求。
Features
1、Diecasted aluminium alloy shell with plastic-sprayed surface.
2、 Normal lamp and emergency lamp of the division type are respectively suitable to
the appropriate sites, but the dual-purpose for lighting and emergency type share a
same lamp body, moreover light source is independent.
3、Under the normal power-supplying condition, inner Nickel-Cadmium battery can
recharge automatically, so that the emergency lamp will turn on automatically when
the power lose because of accident or power failure.
4、Suitable for both steelpipe and cable wiring.
5、It can be equipped with test button and indicator according to user’s requirement.
6、Suitable for GB3836-2000, IEC60079 standard request. |
|
 |
| |
|
 |
| |
|
| 主要技術參數 Main technical parameters |
|
|
防護等級 |
電纜外徑 |
進線口螺紋 |
Exde II BT4
Exde II CT4 |
IP54 |
10-14 |
3/4 |
|
|
| |
|
額定電壓 |
應急起動時間 |
充電時間 |
應急照明時間 |
正常 |
應急 |
0.3 |
24 |
90 |
220 |
6 |
|
|
| |
|
| 配用光源 Supplied with lamps |
|
正常照明 |
應急照明 |
125W自鎮汞燈 |
20W碘鎢燈 |
200W白熾燈 |
|
|
| |
|

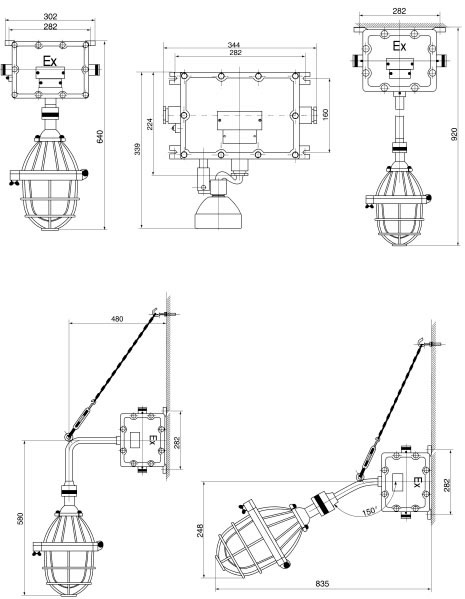

| 外形及安裝舉例 Outline and mounting example |
|
 |
| 壁式安裝90°(b2) ° 壁式安裝30°(b1) |
|
| |
|
| |
|
