EY101系列防爆熒光燈(單腳)(e)
|
|
| |
|
適用范圍
1、1區、2區危險氣體場所;
2、IIA、IIB、IIC類T1～T6組爆炸性氣體或蒸氣環境;
3、適用于可燃性粉塵危險場所；
4、可適用于石油化工、船舶、海上鉆井、采油平臺等場所；
5、 戶內、戶外（IP66)。
Application
1、Hazardous gas areas: Zone 1 & 2;
2、 Explosive gas or vapor atmospheres :Class IIA、 IIB、 IIC, temperature class: T1～ T6;
3、 Hazardous areas with combustible dust;
4、 Suitable for the places of petrochemicals, ship, artesian well on sea and petroleum platform etc.;
5、 Indoor and outdoor(IP66). |
產品特點
1、殼體采用特殊鋁合金壓鑄而成，其變形量小，強度高；透 明罩采用高強度聚碳酸脂模壓成型；
2、采用雙槽密封條密封，防護等級高；
3、內置聯鎖開關，確保透明罩開啟時，燈座的所有電極自動 切斷電源；
4、內置溫度傳感器。故障時，內部溫度達到80℃， 溫度傳 感器自動切斷主電源；
5、內設狀態指示燈，綠色、紅色、黃色分別指示為主電、應 急、故障三個狀態，便于觀察工作狀況;
6、兩側設置連桿，通過旋轉專用鑰匙，帶動內置傳動機構， 達到兩側同時均勻拉緊殼體及透明罩，保證防護效果；
7、外形美觀，為流線型設計；
8、多種安裝形式，滿足不同場所需求。
Features
Enclosure is made of casting aluminum alloy with little distortation and high intensity; transparent guard is made of moulded high-intensity polycarbonates;
Adopts diglyph sealing, for high degree of protection;
Built-in interlock device to ensure when transparent guard opened, all of power supply of lampholders cut off automatically;
Built-in temperature sensor, When the inner temperature attains 80℃ with fault, main power cuts off automatically;
Built-in green, red and yellow status indicator light separately indicate three status for observing, main power, emergency and fault;
By turning the special keys, linked poles,which are installed on the two sides drive built-in transmission machine so that the two sides can simultaneously strain the enclosure and transparent cover so as to ensure protection effect;
Graceful outline with streamline designs;
Various installation form applied to various locations. |
|
 |
 |
| |
 |
| |
| |
|
| 主要技術參數 Main technical parameters |
|
1、防爆標志：ExeIIT6/DIP A20TA, T6;
2、 防護等級: IP66;
3、 電源: 1P+N+PE, 50～60Hz;
4、額定工作電壓: AC187V～AC242V;
5、額定功率：1×40W、2×40W;
6、功率因素：≥0.85;
7、 應急時間：≥90min;
8、 應急轉換時間：≤0.5s。 |
|
| |
|

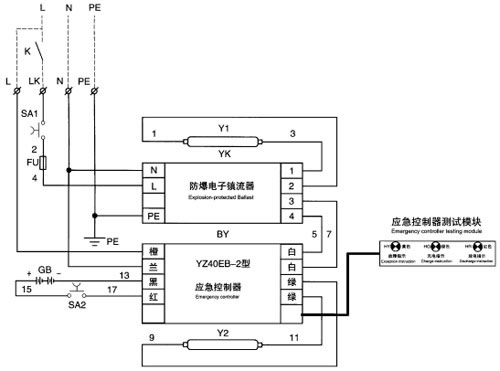

應急電氣原理圖 Emergency electrical principle chart
|
|
使用說明：虛線部分接線由用戶自己來完成。L為充電電源，不受K開關控制一直處于充電狀態。LK為控制電源，由K開關來控制燈亮與滅，有電時電池充電Y1、Y2點亮，停電時應急控制器工作，Y2點亮，Y1熄滅此時電路進入應急狀態。
Instruction: The dashed part is completed by the user. L is charging power. It is not controlled by switch K and is always in the state of charging. LK is control power that controls on and off of the light by switch K. When power is on, battery is charged and Y1,Y2 are enlightened; when power is cut, emergency controller starts to work and Y2 is enlightened while Y1 quenches. Then the conduit goes into emergency state. |
|
| |
|

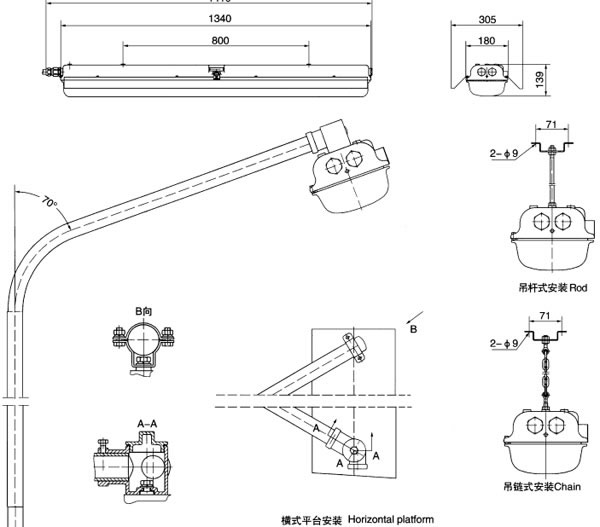

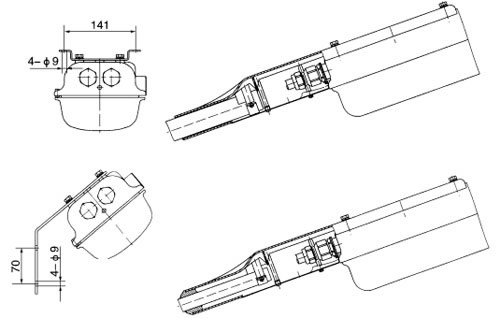

| 外形及安裝舉例 Outline and mounting example |
|
 |
 |
 |
 |

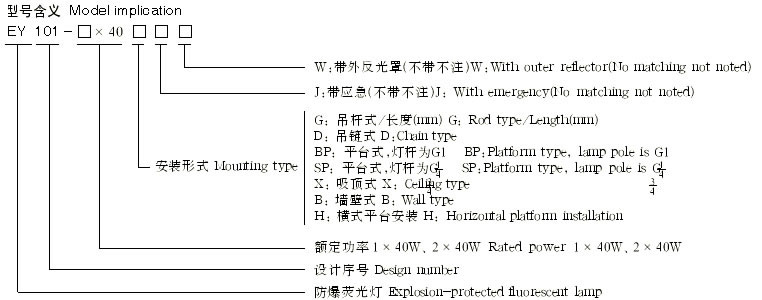

| 型號含義舉例 Model designation |
|
型號 |
應急 |
吊桿式 |
吊鏈?zhǔn)?/div> |
G1 1/4平臺式 |
G 3/4平臺式 |
吸頂式 |
墻壁式 |
橫式平臺安裝 |
額定功率
2×40W |
EY101-2×40GJ |
▲ |
▲ |
|
|
|
|
|
|
▲ |
EY101-2×40DJ |
▲ |
|
▲ |
|
|
|
|
|
▲ |
EY101-2×40BPJ |
▲ |
|
|
▲ |
|
|
|
|
▲ |
EY101-2×40SPJ |
▲ |
|
|
|
▲ |
|
|
|
▲ |
EY101-2×40XJ |
▲ |
|
|
|
|
▲ |
|
|
▲ |
EY101-2×40BJ |
▲ |
|
|
|
|
|
▲ |
|
▲ |
EY101-2×40HJ |
▲ |
|
|
|
|
|
|
▲ |
▲ |
EY101-2×40G |
|
▲ |
|
|
|
|
|
|
▲ |
EY101-2×40D |
|
|
▲ |
|
|
|
|
|
▲ |
EY101-2×40BP |
|
|
|
▲ |
|
|
|
|
▲ |
EY101-2×40SP |
|
|
|
|
▲ |
|
|
|
▲ |
EY101-2×40X |
|
|
|
|
|
▲ |
|
|
▲ |
EY101-2×40B |
|
|
|
|
|
|
▲ |
|
▲ |
EY101-2×40H |
|
|
|
|
|
|
|
▲ |
▲ |
|
| |
|
| |
|
| |
|
