ADYJ系列復合型防爆潔凈熒光燈
|
|
|
|
適用范圍
1、2區危險氣體場所;
2、IIA、IIB、IIC類T1~T4組爆炸性氣體或蒸氣環境;
3、適用于可燃性粉塵危險場所;
4、可適用于石油化工、船舶、海上鉆井、采油平臺等場所;
5、 戶內、戶外(IP65)。
Application
1、 Hazardous gas areas: Zone 2;
2、Explosive gas or vapor atmospheres :Class IIA、 IIB 、IIC, temperature class: T1~ T4;
3、 Hazardous areas with combustible dust;
4、Suitable for the places of petrochemicals, ship, artesian well on sea and petroleum platform etc.;
5、 Indoor and outdoor(IP65). |
產品特點
1、 外殼可采用優質鋼板或不銹鋼焊接成型,透明罩采用鋼化 玻璃;
2、整體采用密封結構,具有較強的防水、防塵功能;
3、采用電子式鎮流器,可根據要求配裝應急裝置;
4、內裝燈管可根據要求選用單腳燈管或雙腳燈管;
5、采用中心鎖扣裝置,透明罩采用特有的內法蘭設計,并 且同殼體壓緊方式采用內藏式結構。檢修時通過專用工具 就能方便開啟燈具;

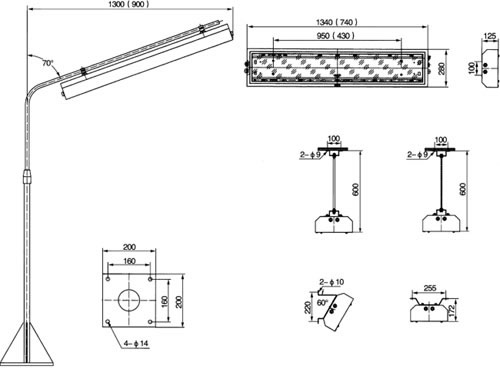

6、多種安裝形式,滿足不同場所需求。
The shell is made of welded high quality carbon steel or stainless steel;transparent cover adopts toughened glass;
Integer adopts sealing structure with good features of waterproof and dustproof;
Adopts electronic ballast; emergency device can be equipped to the lamp by request;
Built-in lamplight can be selected from single-pin tube or double-pin tube by request;
Adopts central padlocking device; transparent shade is of special inner flange design, and the way of contacting the shell is of concealled model. Using special tools can open lamp easily when maintenance;
Various installation form applied to various locations.
|
|
|
|
|
|
|
|
主要技術參數 Main technical parameters |
|

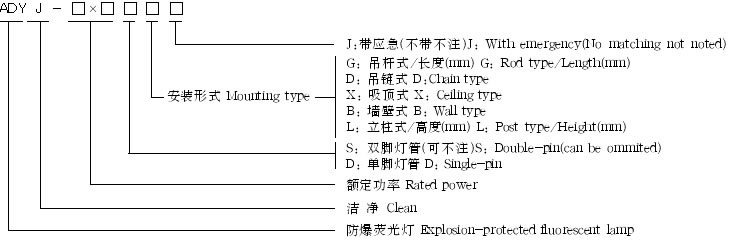

型號 |
防爆標志 |
額定電壓(V) |
功率因數(W) |
應急時間 |
轉換時間 |
電纜外徑 |
進線螺紋 |
ADYJ-1×36(40) |
ExnAIIT4 DIP A20 TA,T4 |
AC220~10%
~254+6%
~198-10%
~250+10% |
CosF≥0.95 |
*≥90 |
*≤0.5 |
Ф8~Ф12 |
M20 |
ADYJ-2×36(40) |
ADYJ-3×36(40) |
ADYJ-1×18(20) |
ADYJ-2×18(20) |
ADYJ-3×18(20) |
|
|
|

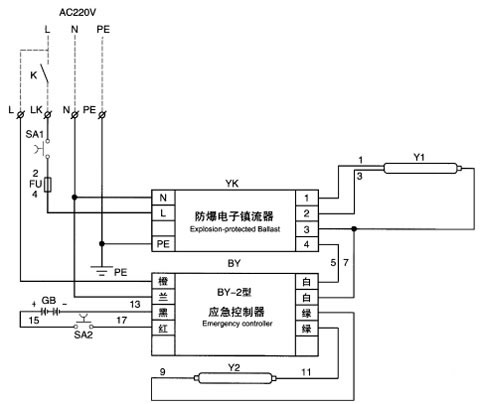

應急電氣原理圖 Emergency electrical principle chart
|
|
|
|
|
|
|
|
|
|
