BXX8050系列防爆防腐電源插座箱(IIC)



適用范圍
1、1區、2區危險場所。
2、ⅡA、ⅡB、ⅡC類爆炸性氣體環境。

Application
1、Can be used in Zone 1 and Zone 2 dangerous places.
2、Can be used in ⅡA、ⅡB、ⅡC group explosive atmosphere.


產品特點
1、插座箱外殼采用玻璃纖維增強不飽和聚酯樹脂壓制而成,外形美觀,耐腐蝕、抗靜電、耐沖擊及熱穩定性好等優良性能。
2、各種插座組裝在一起適合不同的要求,并可根據要求加裝指示燈。
3、符合GB3836-2000,IEC60079標準要求。
Features
1、The shell is made of glass fiber and unsaturated polyester resin, with beautiful appearance, the functions of corrosiion-proofing, electro static-resistant, impulsion-withstanding, thermal stability.etc.
2、The diversified sockets composed together that suits for different requests, and it can be added indicators by request.
3、Suitable for GB3836-2000, IEC60079 standard request.



主要技術數據 Main technical Specification
回路數
額定電流(A)
額定電壓(V)
極數
防護等級
防爆標志
防腐等級
2 3 4 6
16
220
1P+N+PE
IP65
Exed Ⅱ CT6
WF2
380
3P+N+PE

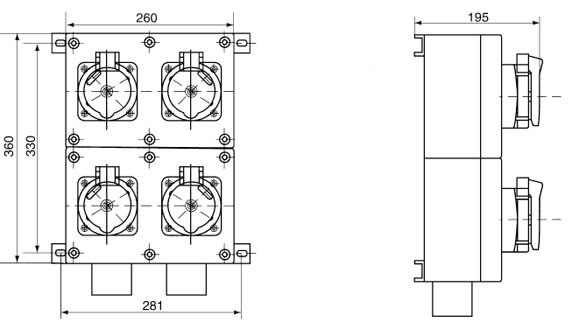

產品外形舉例 Outline example
